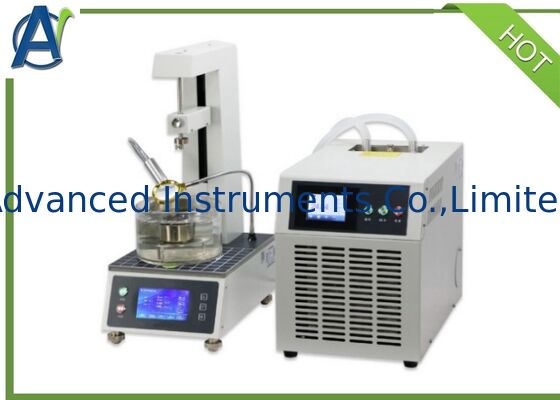

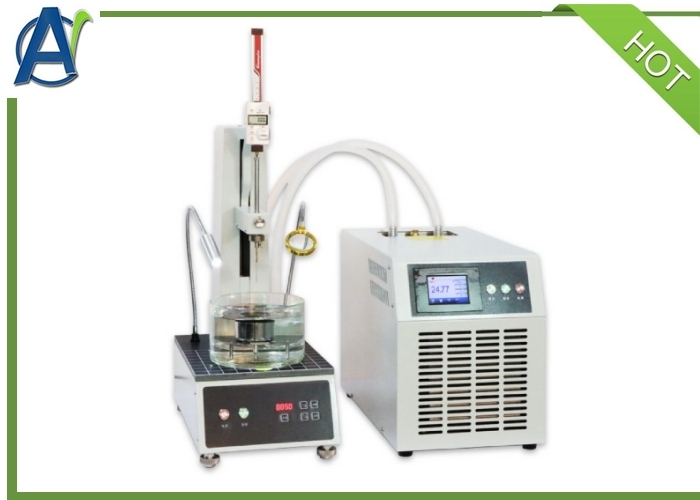

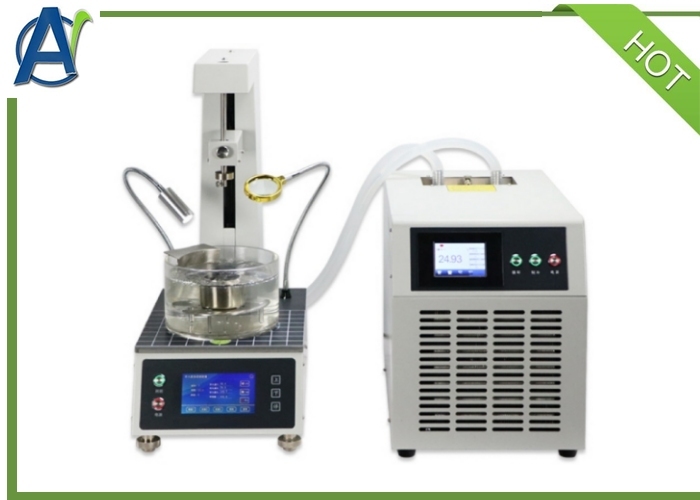

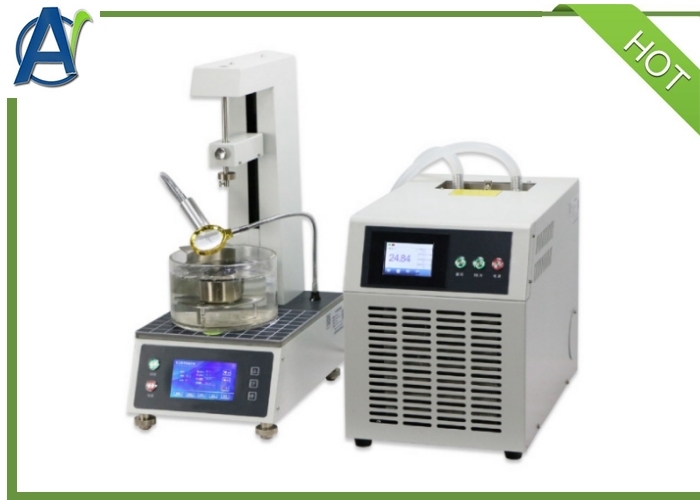

ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester

ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester
ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester
बुनियादी जानकारी
Place of Origin: China
ब्रांड नाम: Advanced Instruments
प्रमाणन: ASTM D5
मॉडल संख्या: एआईसी-2801एफ
न्यूनतम आदेश मात्रा: 1 सेट
मूल्य: US$3000-5000/set
पैकेजिंग विवरण: प्लाईवुड मामले
प्रसव के समय: 20 दिन
भुगतान शर्तें: टी/टी, एल/सी, डी/पी
आपूर्ति की क्षमता: प्रति माह 20 सेट
सबसे अच्छी कीमत अब से संपर्क करें
परीक्षण मानक: एएसटीएम डी5 गारंटी: 1पूरा वर्ष
परिवहन पैकेज: प्लाईवुड मामले ट्रैंडमार्क: उन्नत उपकरण
परिचालन विद्युत आपूर्ति: AC220 V±10V, 50Hz स्नान की मात्रा: 5L (बाह्य परिसंचरण 2L सहित)
तापमान की रेंज: (5.0~60.0)℃ तापमान सटीकता: ±0.1℃(5.0℃~25.0℃)
परिसंचरण जल की मात्रा: 8l/मिनट अधिकतम बिजली की खपत: 1200W
लगातार तापमान स्नान: कठोर कांच का चैम्बर परिसंचरण जल स्नान का आयाम: 460मिमी×290मिमी×420मिमी
प्रमुखता देना:

ASTM D5

,

Low-Temperature Penetrometer

,

Bitumen Needle Penetration Tester

General Introduction



This Low-Temperature penetrometer is designed and made as per T0604-2011 Penetration Test for Bituminous Materials in JTG E20-2011 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering and ASTM D5 Standard Test Method for Penetration of Bituminous Materials. The penetrometer is used to determine the penetration of pavement petroleum asphalt, modified asphalt, liquid petroleum asphalt and emulsified asphalt. It is also suitable to test solid particle, powder, colloid and raw-food materials such as cheese, glycine, butter, cream and leavening. It can be widely used in food industry, highway engineering and other industrial fields.



Product Advantages



1.The instrument is equipped with HWY-3 constant temperature water bath, which can provide circulating constant temperature water to the constant temperature bathtub on the working platform of the penetration meter, which can realize the temperature environment required by the tested sample, and the temperature control accuracy reaches ±0.1°C.

2.Equipped with a digital display time control device, the suction and release of the electromagnet are controlled after the set time is reached, so that the push rod falls and stops moving.

3.Equipped with a cold light source illumination device and a magnifying glass, which is convenient for precise use and operation during testing.

4.Equipped with a 100% millimeter ruler depth measuring mechanism with LCD digital clearing, the data is stable and accurate, with an accuracy of 0.1 pin penetration, with zeroing and memory functions, and the data is stable and can be checked.

5.The maximum measurable insertion value is not less than 600 units, which can adapt to various test requirements.

6.The unique electric upgrade structure controls the rough adjustment and fine-tuning functions of the lifting frame by the stepper motor, which is convenient for the needle tip to align with the specimen plane; It solves the shortcomings of the short service life of the original gear lifting structure and improves the durability of the equipment.

7.The lifting frame has the function of automatically controlling the drop and locking of the pin rod, and can automatically stop steadily in any position.

8.The operating table is equipped with horizontal bubbles, and the bottom stainless steel foot has an adjustment function to ensure the high level of the instrument.

ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester 0


The Technical Specifications and Parameters



Circulatory water bath
Power supply AC(220±10%)V, 50Hz
Bath volume 5L (including external circulation 2L)
Temperature range (5.0~60.0)℃
Temperature accuracy ±0.1℃(5.0℃~25.0℃)
Circulatory water quantity

8L/min
Working environment Temperature: 15℃~35℃,
Relative humidity: ≤85%
Maximum power consumption 1200W
Dimension 460mm×290mm×420mm
Weight weight 22kg
Penetrometer
Timing controller 5s ,8s,10s,12s,30s,or 60s can be selected. Bias within±0.1s
Needle holde High accuracy digital display. Easy to use and observe. It can be moved to any position
Resolution 0.01mm
Penetration accuracy ±1 penetration
Measurement range (0-600 ) penetration
The length of standard needle 50mm
The weight of standard needle 2.5g±0.05g
Sample container it meets the standard T 0604-2011
Counterweight 50g
Dimension 260mm×400mm×640mm
Net Weight 13kg


ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester 1


FAQ
1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
