| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | Advanced Instruments |
| प्रमाणन: | ASTM D381 |
| मॉडल संख्या: | ईजीटी-2 |
| न्यूनतम आदेश मात्रा: | 1 सेट |
| मूल्य: | US$3000-4000/set |
| पैकेजिंग विवरण: | प्लाईवुड मामले |
| प्रसव के समय: | 15 दिन |
| भुगतान शर्तें: | टी/टी, एल/सी, डी/पी |
| आपूर्ति की क्षमता: | प्रति माह 50 सेट |
| परीक्षण मानक: | एएसटीएम डी1319 | बिजली की आपूर्ति: | एसी220 वी±10%, 50 हर्ट्ज |
|---|---|---|---|
| अधिकतम बिजली की खपत: | 3500W | बाष्पीकरणीय स्नान: | एल्यूमीनियम स्नान ब्लॉक φ260mm×130mm |
| इलेक्ट्रिक वाइब्रेटर: | क्रमशः दो उपप्रणालियों को नियंत्रित करें | छिद्रों की संख्या का परीक्षण करें: | 5 |
| छेद के आकार का परीक्षण करें: | φ51मिमी×70मिमी | परिचालन तापमान: | 160~165℃ |
| वायु कम करने वाला वाल्व काम का दबाव: | 0.07Mpa | सापेक्षिक आर्द्रता: | ≤85% |
| वायु प्रवाह दर: | (600±90) एमएल/एस | ||
| प्रमुखता देना: | ASTM D381,Petroleum Existent Gum Analyzer,Gasoline Existent Gum Test Equipment |
||
Purpose and scope

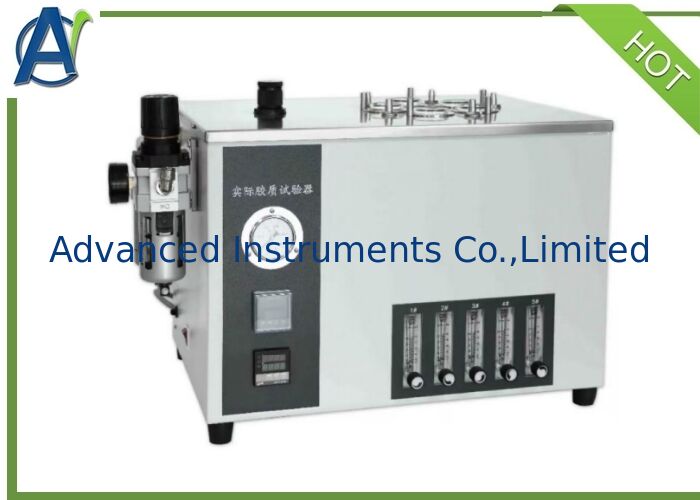

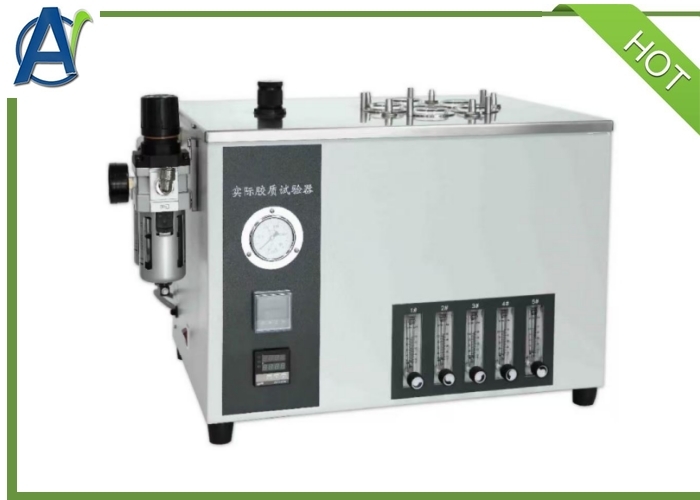

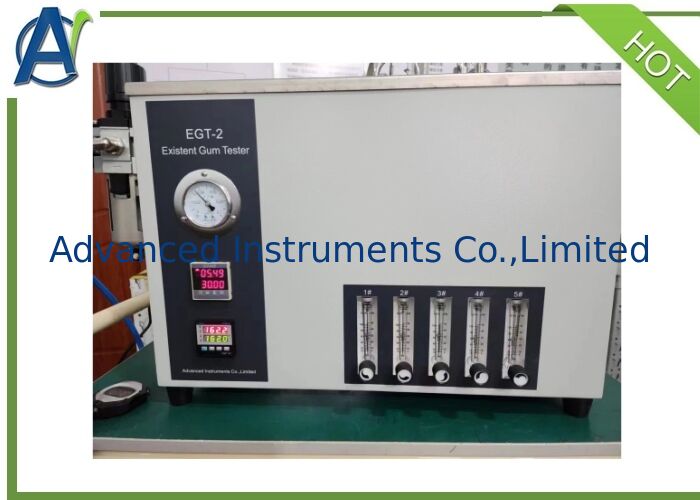

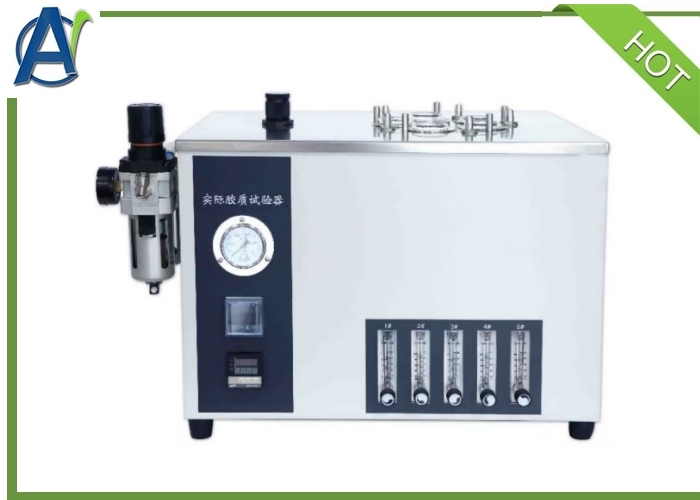

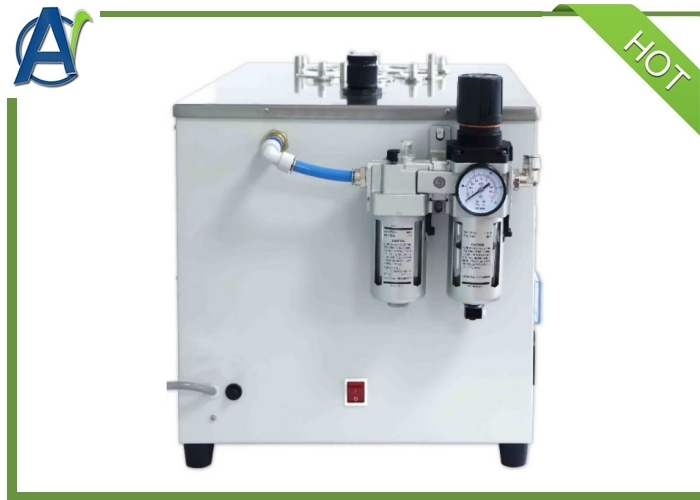

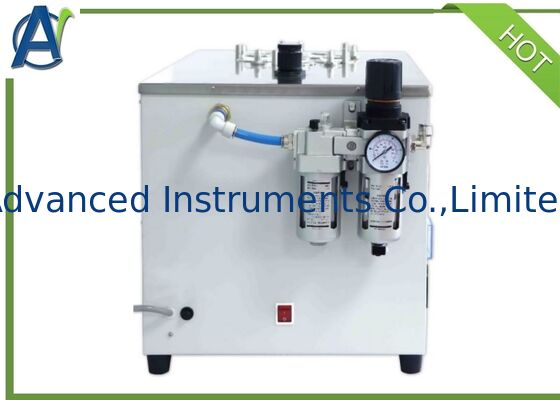

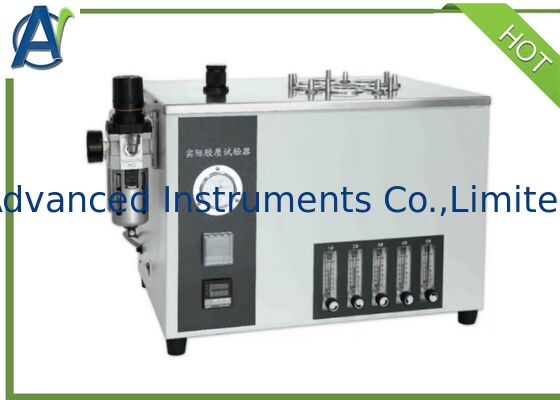

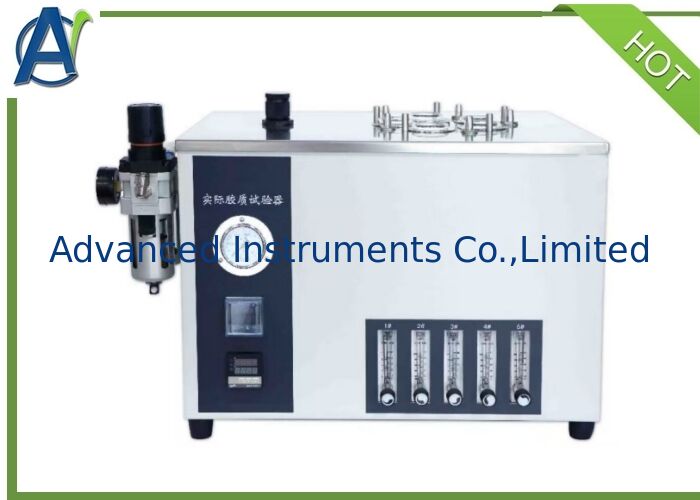

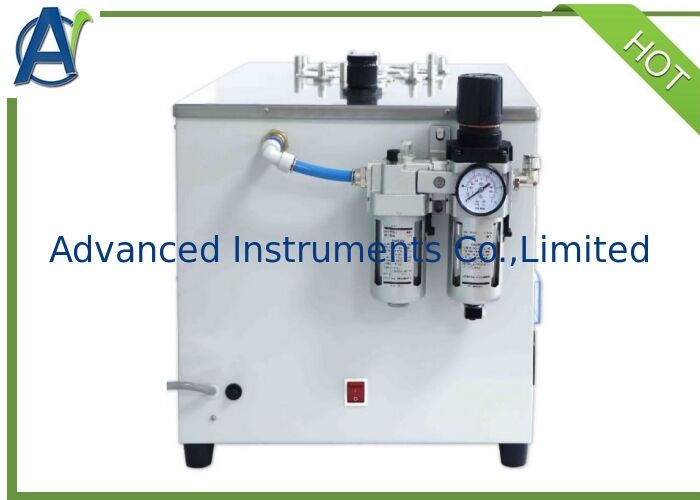

The Petroleum Products Existent Gum Content Tester is designed and made as per standards GB/T 8019 Standard test method for gum content in fuels by jet evaporation and ASTM D381 Standard test method for gum content in fuels by jet evaporation. It is suitable to determine the existent gum content of aviation gasoline and motor gasoline(Not suitable to determine the existent gum content of aviation turbine fuel).
|
Operating Power supply
|
AC220V±10%, 50Hz
|
|
The whole power consumption
|
3500W
|
|
Evaporative bath
|
Aluminum bath block φ260mm×130mm (diameter × height)
|
|
Test the number of holes
|
5
|
|
Test hole size
|
φ51mm×70mm (inner diameter× depth)
|
|
Operating temperature
|
160~165℃
|
|
Air reducing valve working pressure
|
0.07MPa
|
|
Air flow rate at the outlet of the nozzle
|
(600±90)mL/s per well at room temperature and pressure
|
| Applicable environment | Temperature: 15°C~35°C, Relative Humidity: ≤85% |
| Dimensions | 590mm×480mm×340mm |
FAQ
1.What's the delivery time?
About 15days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
